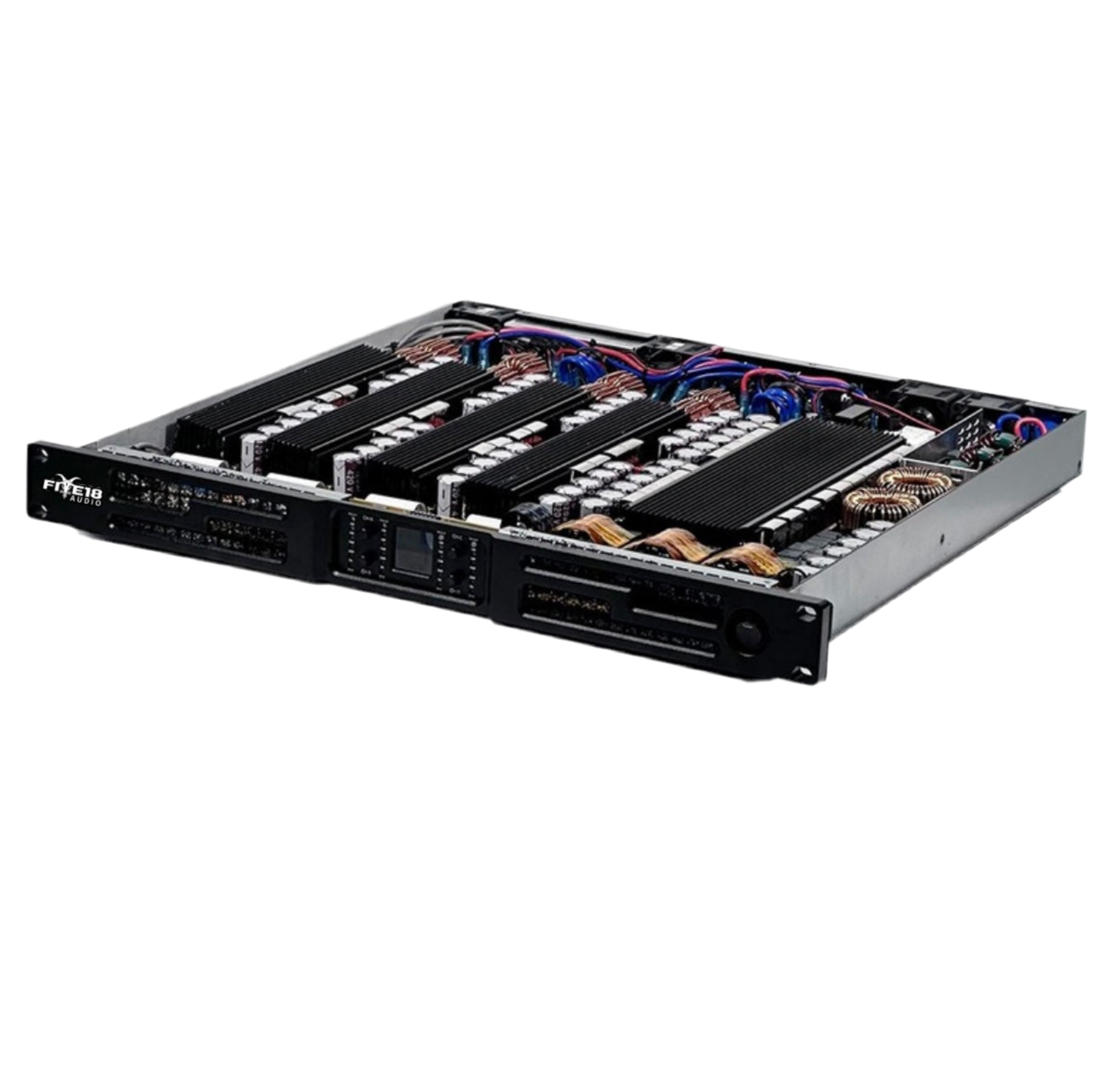

4 Channel 8500 Watts at 2 OHMS Touring Amplifier

Model : 8500watts x 4 at 2 ohms

8 ohms Stereo Power: 4X4200W RMS
4 ohms Stereo Power: 4x7800W RMS
2 ohms Stereo Power: 4x8500W RMS
8 ohms Bridged Power: 2x15600W RMS
4 ohms Bridged Power: 2x17000W RMS

Height: 1U, Class D, 4-channel digital power amplifier
Operating Voltage: 90-260V, 60Hz/50Hz
1U Digital 4-channel power amplifier with PFC
Max Output Voltage/Current in Stereo Mode: 185V/85A peak Nax Output Voltage/Current in Bridged Mode: 370V peak
THD (1kHz, below 1dB clipping) : <0. 05%
Frequency Response (201z-20kHz) : 20Hz-20kHz +0/-1dB
Gain (Selectable) for 8 ohm :32dB/35dB/38dB/41dB
Operating Temperature: 0° C-45° C / 32° F-113° F
Output Sockets: Swiss Neutrik Speakon connectors
Input Sockets: Combo XLR type, 3-pin
THD + N Harmonic Distortion: <0.5% from IW to full power (typical <0. 05%)
IMD (Intermodulation Distortion): <0. 5% from IW to full power (typical <0.05%)
Signal-to-Noise Ratio: >110dB
Sensitivity (Rated Power at 8 ohm): 0.775V / 1V / 32dB
Damping Factor: >5000 @ 20-200Hz
Slew Rate: >50V/us @ 80
Input Impedance: Balanced >20k ohms / Unbalanced >10k ohms
Resolution: ≥75dB
Crosstalk: >66dB @ 1kHz
S/N Ratio: >110dBA (20Hz-20klz, weighted)
LED Display Indicators: Green for normal operation, yellow for overheat warning Cooling Method: Thermally controlled variable-speed air cooling, airflow from front to back Protection: Soft start, VHF, AC/DC protection, limiter, over-frequency, short-circuit, long-term plifier protection, thermal protection, temperature warning, power-on mute, hot-plug signal lines, d overload protection
Power Supply Voltage: PFC universal power system, 90-260V selectable voltage, compatible with any untry's voltage, 50Hz-60Hz

Dimensions (WXDXH): 482mm X 460mm X 44mm
Net Weight: 12. 5kg
Gross Weight: 16. 5kg
