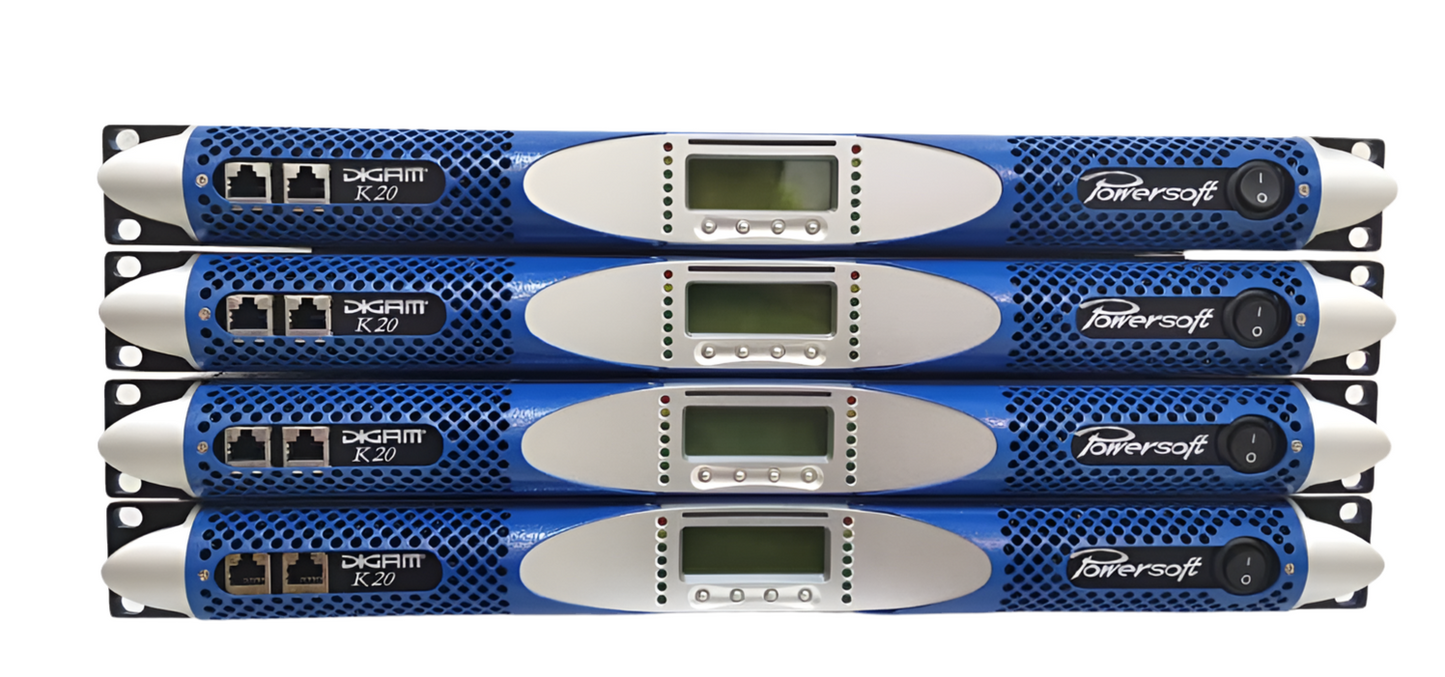

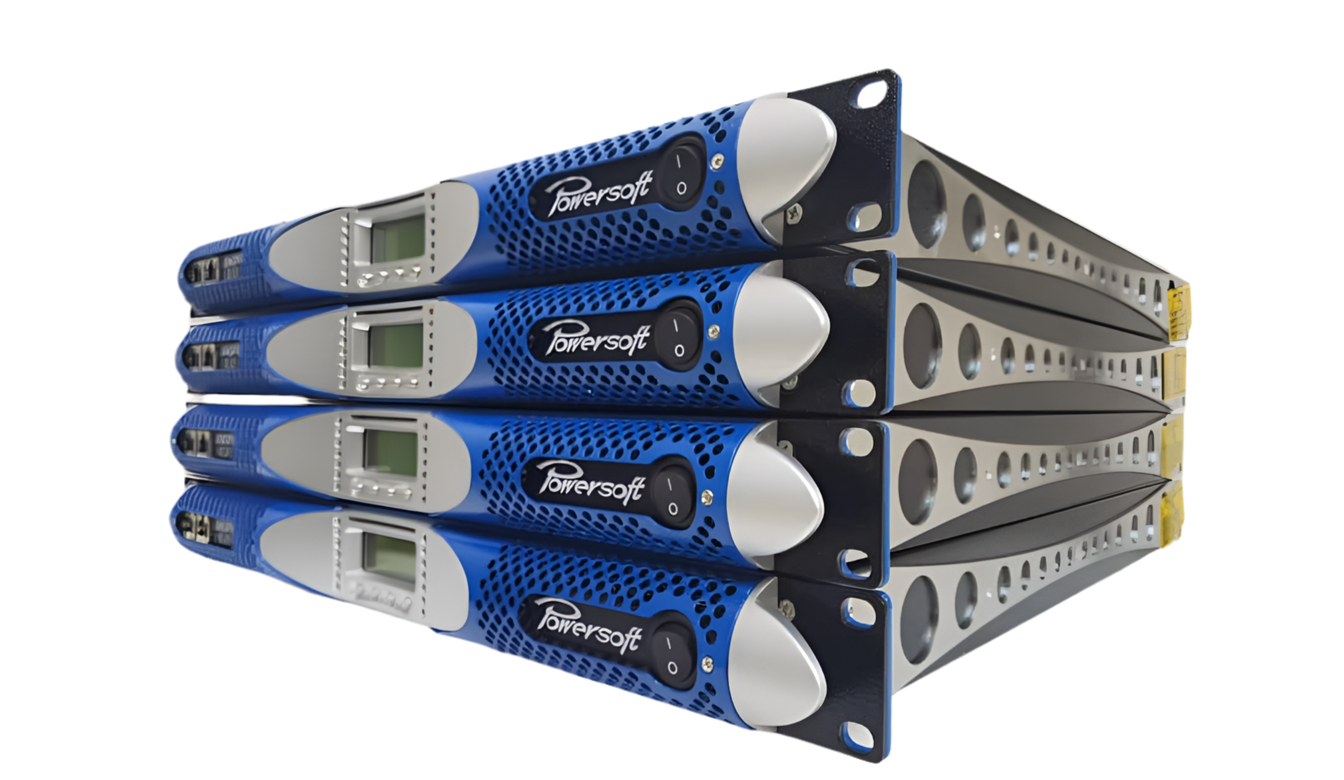

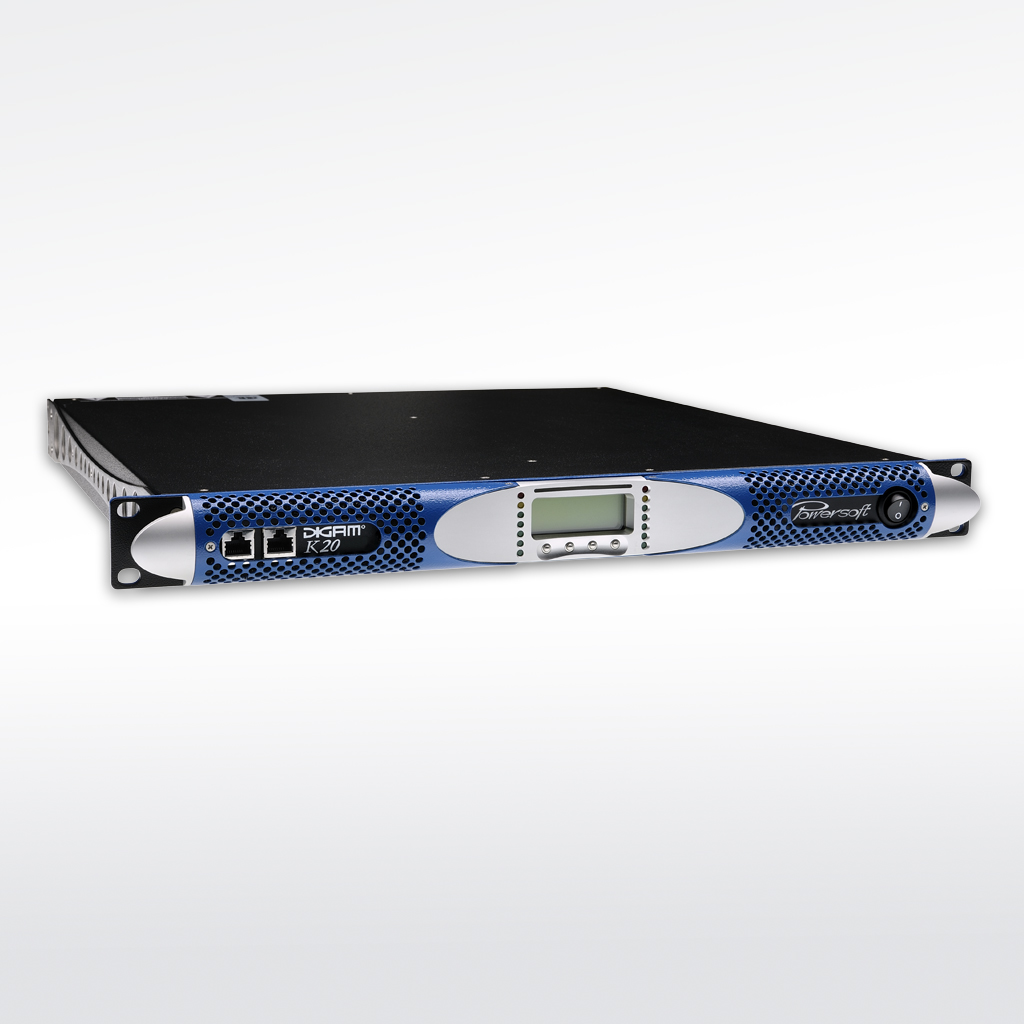

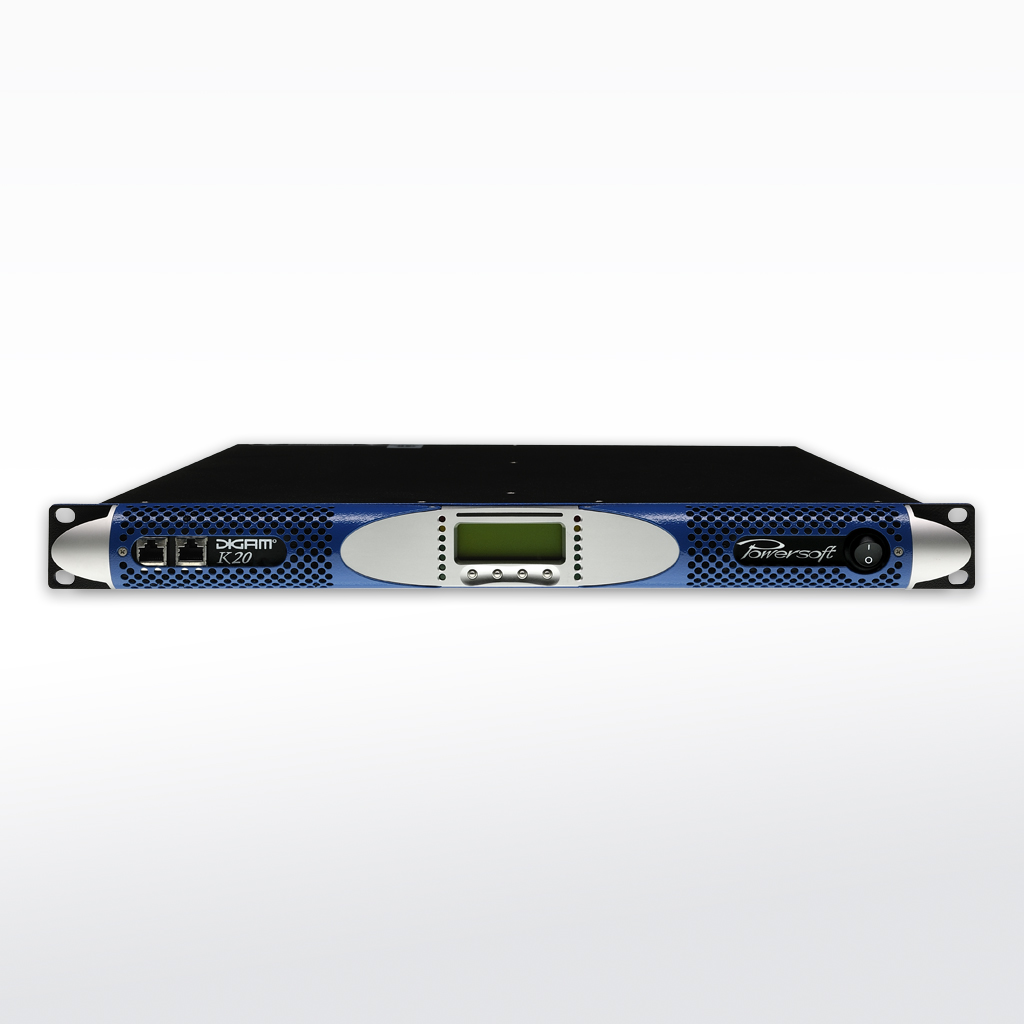

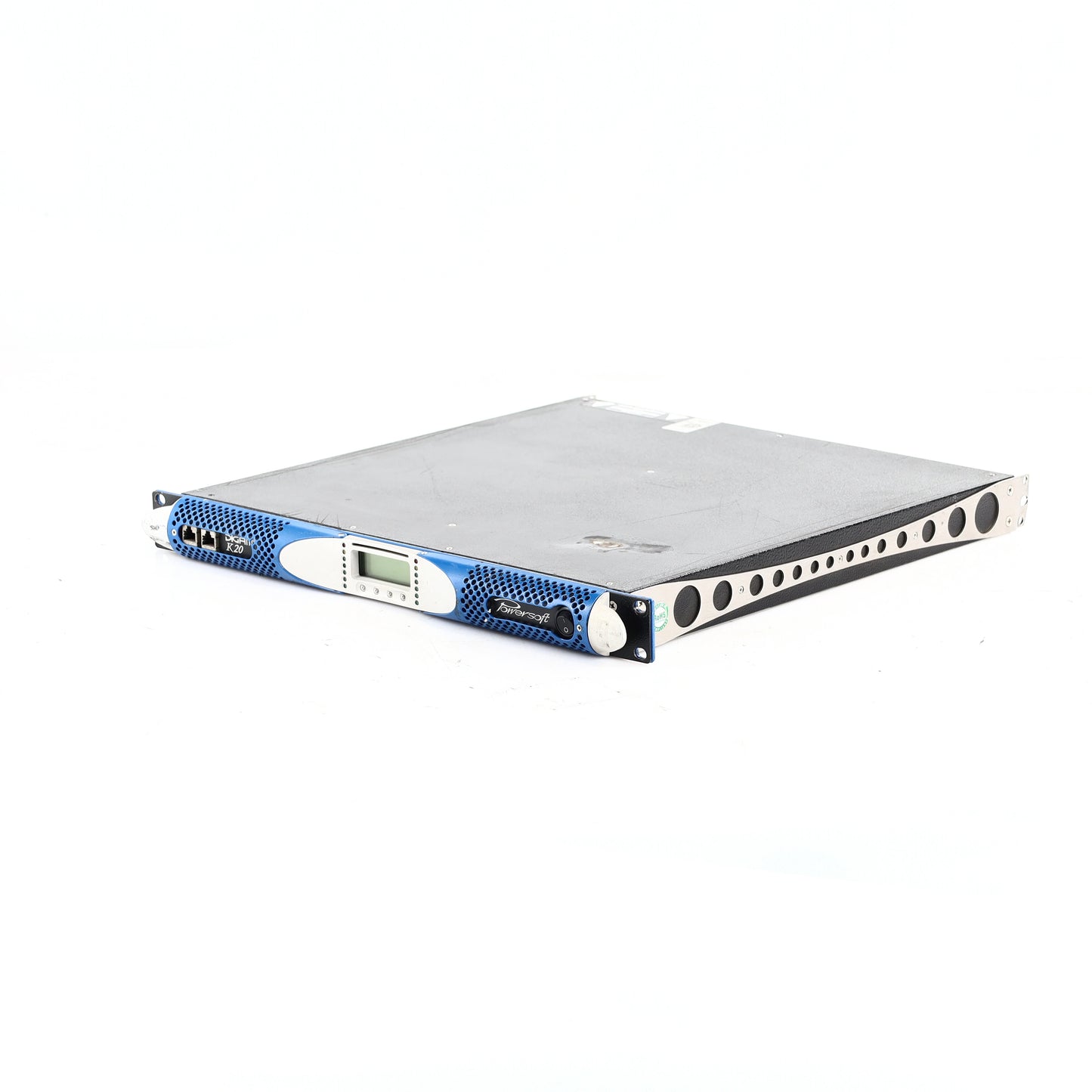

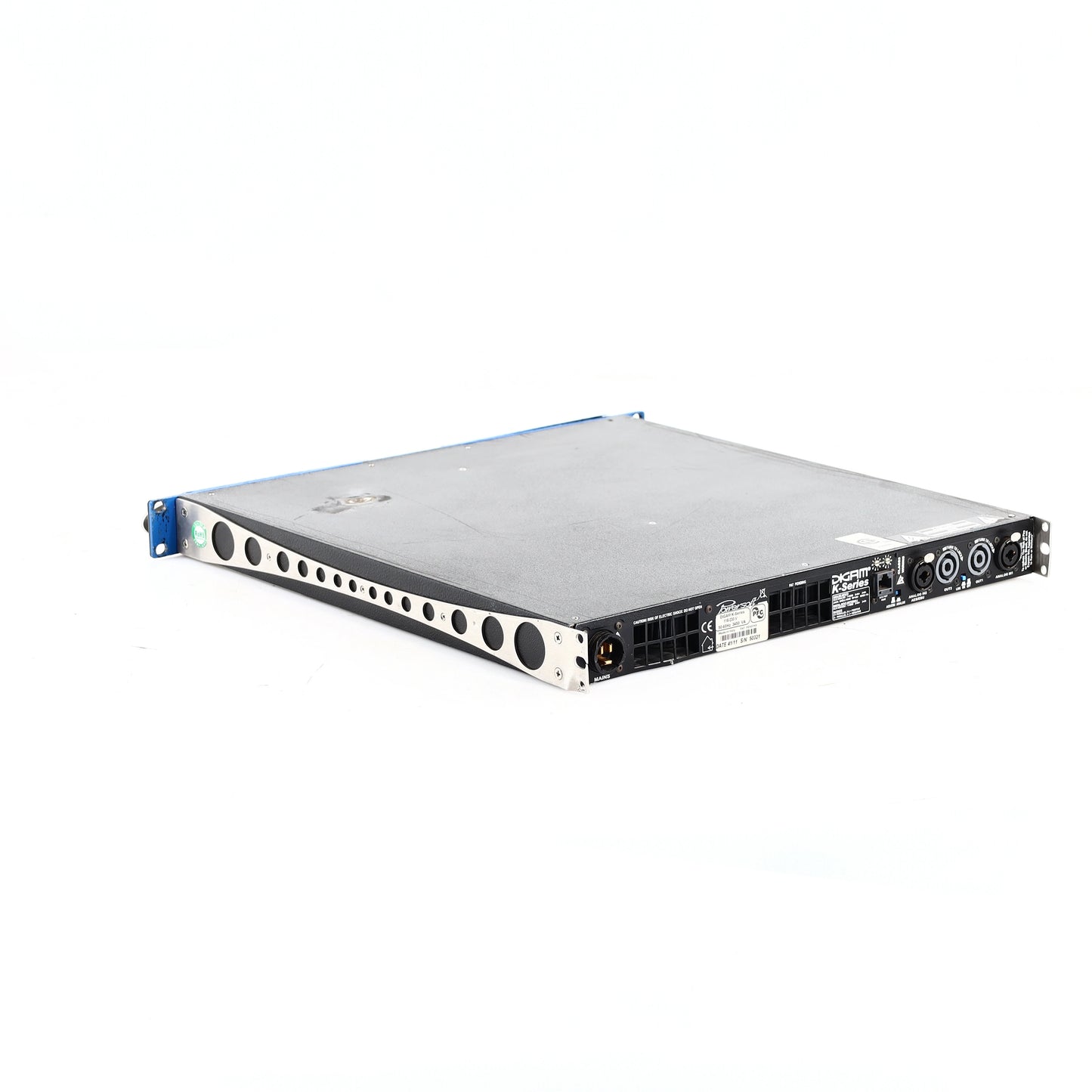

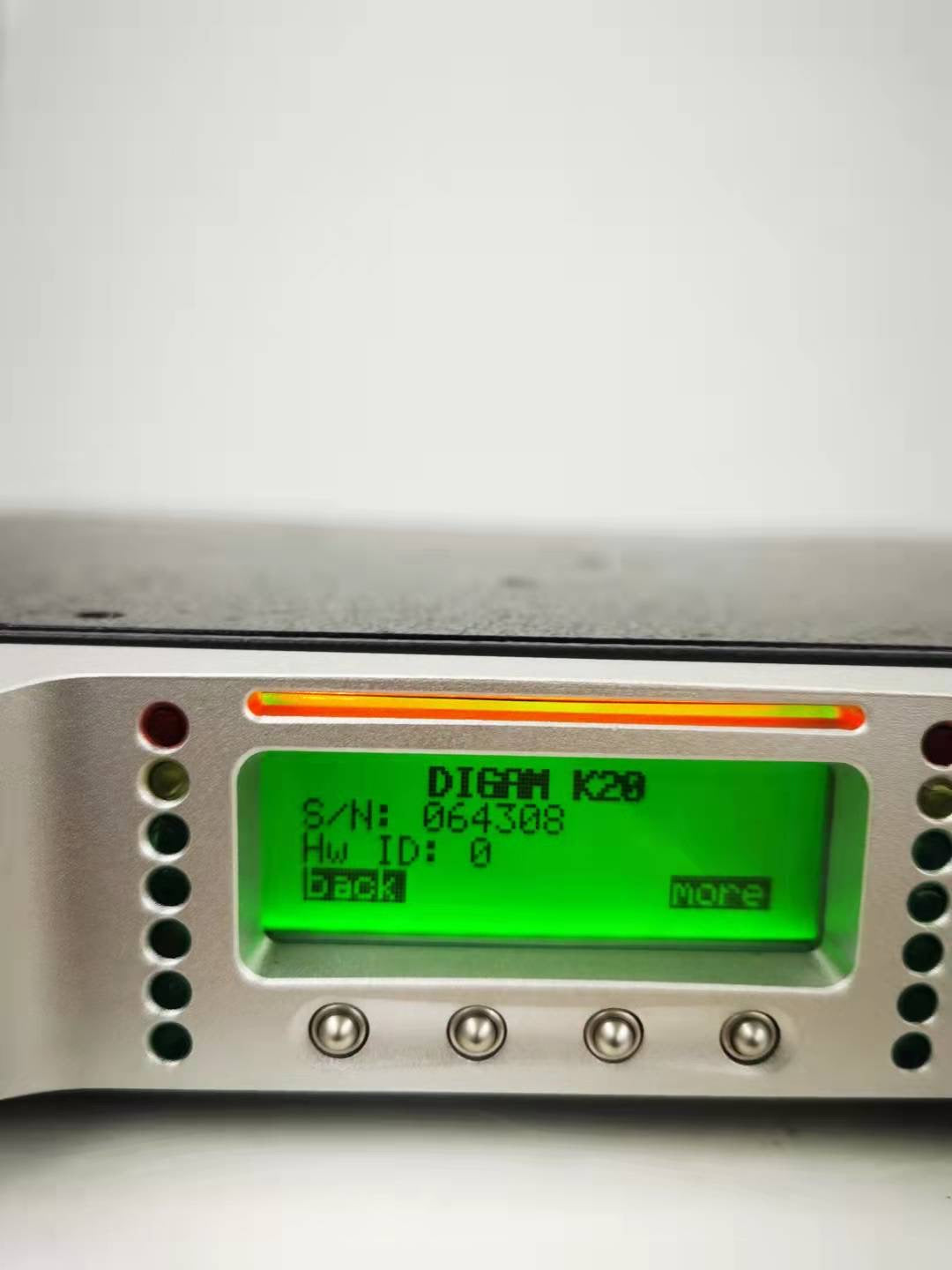

Powersoft K20 Amplifier

Powersoft K20 Amplifier

$2,600.00 USD
$7,000.00 USD $2,600.00 USD
Sale Sold out

The K20 Non DSP Version  impresses with up to 18,000 W in single rack space, making it probably the most powerful amplifier at its size.

Ideal for subwoofers requiring relatively high continuous power and ample headroom, the K20 is the unique result of smart design, attention to sound quality, and extremely high efficiency with reliability, portability, and adaptability in mind.

In use worldwide by leading touring and event companies, K Series is preferred among the top ranking system designers, sound engineers, and system techs on the road for making their lives easier, giving them reliable premier-grade power and headroom in the smallest possible package.

SPECIFICATIONS

GENERAL
Output power per channel
Output power per channel 9000 W @ 2 Ω 5200 W @ 4 Ω 2700 W @ 8 Ω
Bridge mode 18000 W @ 4 Ω 10400 W @ 8 Ω
Max output voltage / current
Single channel mode 1225 Vpeak / 125 Apeak
Bridge mode 450 Vpeak
AC MAIN POWER
Power supply Universal, regulated switch mode with PFC (Power Factor Correction)
Nominal power requirement 100-240 V ±10%, 50-60 Hz
Operating voltage 90 V – 264 V
Power consumption / current draw
Idle 115 V:91 W – 1.3 A 230 V:88 W – 1.17 A
1/8 of max output power @ 4 Ω 115 V:1650 W – 15.8 A 230 V:1625 W – 7.9 A
1/4 of max output power @ 4 Ω 115 V:3250 W – 29.3 A 230 V:3250 W – 14.7 A
THERMAL
Operating temperature range 0° – 45° C – 32° – 113° F
Thermal dissipation*
Idle 115 V:682 BTU/h – 171.9 kcal/h 230 V:682 BTU/h – 171.9 kcal/h
1/8 of max output power @ 4 Ω 115 V:1590 BTU/h – 400.7 kcal/h 230 V:1590 BTU/h – 400.7 kcal/h
1/4 of max output power @ 4 Ω 115 V:2498 BTU/h – 629.5 kcal/h 230 V:2498 BTU/h – 629.5 kcal/h
