Five18 Audio

4 Channel X4 Powersoft Module

4 Channel X4 Powersoft Module

$2,899.00 USD
$8,600.00 USD $2,899.00 USD
Sale Sold out

X4 innovates and evolves the concept of the amplification platform through the integration of a worldwide compatible three-phase power supply and a fully-featured DSP.

The complete digital audio signal management system dBA PC Audio DSP not Armonia

The power supply permits worldwide AC acceptance and direct connection to any regional power line configuration: it is suitable for Single Phase, Bi-Phase, or Three Phase operation from 85 VAC up to 460VAC without the need for manual selection. True Three Phase load balancing is directly achievable by the unit without any complex load assignment in the power distribution system design.

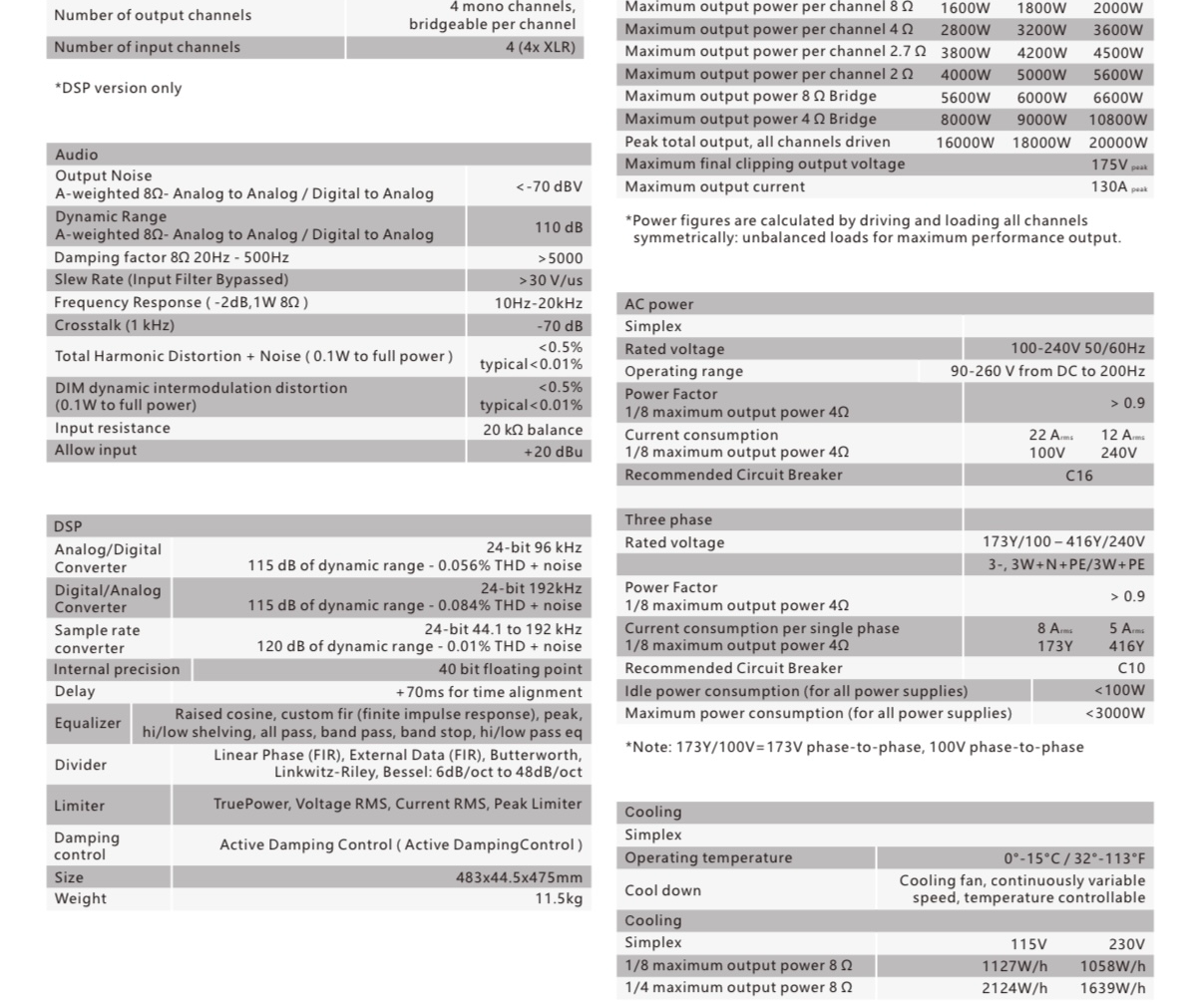

SPECIFICATIONS

GENERAL
Output power per channel

Output power per channel

4500W 2.7 Ω

 5600W @ 2 Ω 3600 W @ 4 Ω

2000 W @ 8 Ω
Bridge mode 10800W @ 4 Ω 6800W @ 8 Ω

Peak total output, all channels driven 20000W

Max output voltage / current
Max unclipped output voltage @8 Ω 175 Vpeak
Current 130 Apeak
AC MAIN POWER
Power supply Universal, regulated switch mode with PFC (Power Factor Correction)
Nominal power requirement 100-240 V ±10%, 50-60 Hz
Operating voltage 90 V – 264 V
Power consumption
Idle <100 W
Max <3000 W
Operating temperature range 0° – 35° C – 32° – 95° F
Thermal dissipation*
1/8 of max output power @ 8 Ω 115 V:1127BTU/h 230 V:1058BTU/h
1/4 of max output power @ 8 Ω 115 V:2124BTU/h 230 V:1639BTU/h
View full details
